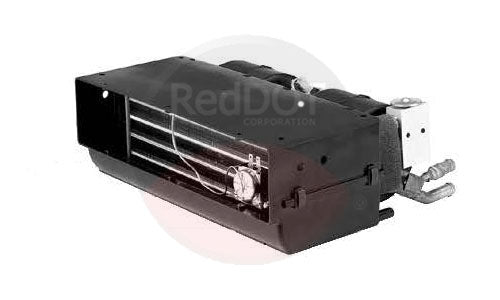

R-2300-15P

UNIT - HEATER/A/C SLIMLINE (12V)

Interchange Numbers:
R-2300-15P

R-2300 SPECIFICATIONS

BTUs

Heating – 32,070 BTU/Hr @ 100°F
(9 kW @ 37.8°C) air temperature rise

Cooling – 17,736 BTU/Hr @ 36°F
(5.2 kW @ 2.2°C) refrigerant temperature
and 80°F (26.7°C) wet bulb entering air

WEIGHT - 15 lbs. (6.8 kg)
AIR FLOW - 275 CFM (467 m /h)

CURRENT - 12.2 amps @ 13.6 VDC (includes 4 amps for A/C clutch)
DRAW - 6.1 amps @ 27.2 VDC (includes 2 amps for A/C clutch)
